Products

Servo Motors & Drivers

Yaskawa range of Servo Drives

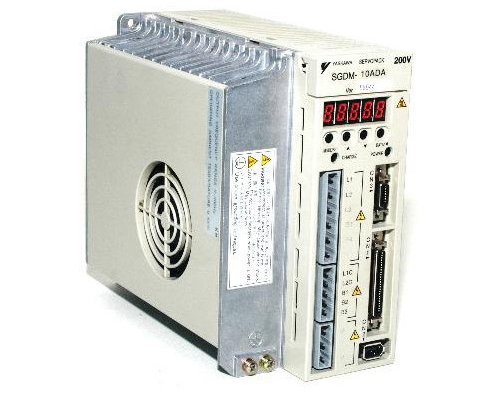

Sigma - II Series Servo Drives - 30W to 55 kW

  • Choice of Low inertia, Middle inertia and High inertia motors
  • Very good peak torque performance (approx 300%) for longer period of time to help in quick acceleration
  • 17 bit incremental encoder (resolution-131072 PPR) as standard" with Serial Interface to Servo pack. Option for absolute encoder
  • Choice of Servo Drives with 200V & 400V.
  • Speed Control, Position Control, Torque Control and Contact Speed asStandard
  • On the fly mode change through digital input possible asstandard
  • Analog / Pulse train reference as standard with network option of Mechatrolink-II, Profibus, Devicenet

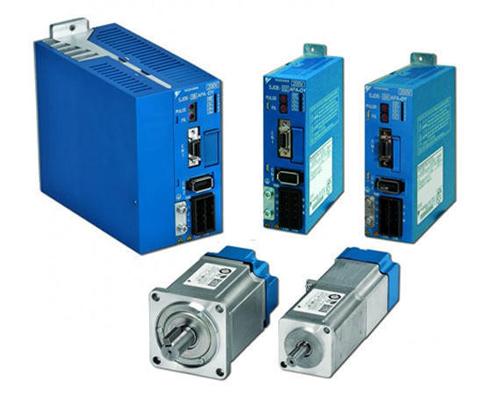

JUNMA Series Servo Drives- 100W to 750W

  • Excellent costto performance ratio for Position Control
  • Industry'sfirstplugand play type servo drive
  • Achieve optimum servo performance without gain setting and tuning parameters (No gain tuning and parameter setting required)
  • Great stability despite of load changes
  • Encoder resolution: 10000 PPR
  • Option for servomotor with electromagnetic brake
  • Selectable electronic gear 1000 PPR, 2500 PPR, 5000 PPR and 10000 PPR
  • Option of Mechatrolink-II communication.

Sigma-V Series Servo Drives - 50 W to 4.4 kW

  • Very High Performance Servo with outstanding frequency response of 1600 Hz (best in Industry)
  • Choice of Low inertia, Middle inertia and High inertia motors
  • Very good peak torque performance (approx 350%) for longer period oftime to help in quick acceleration
  • 20 bit incremental encoder (resolution-l,048,576 PPR) as standard with Serial Interface to the Servo pack.
  • Maxspeed upto 6000 rpm
  • Faster setup, simple tuning process with tuneless function

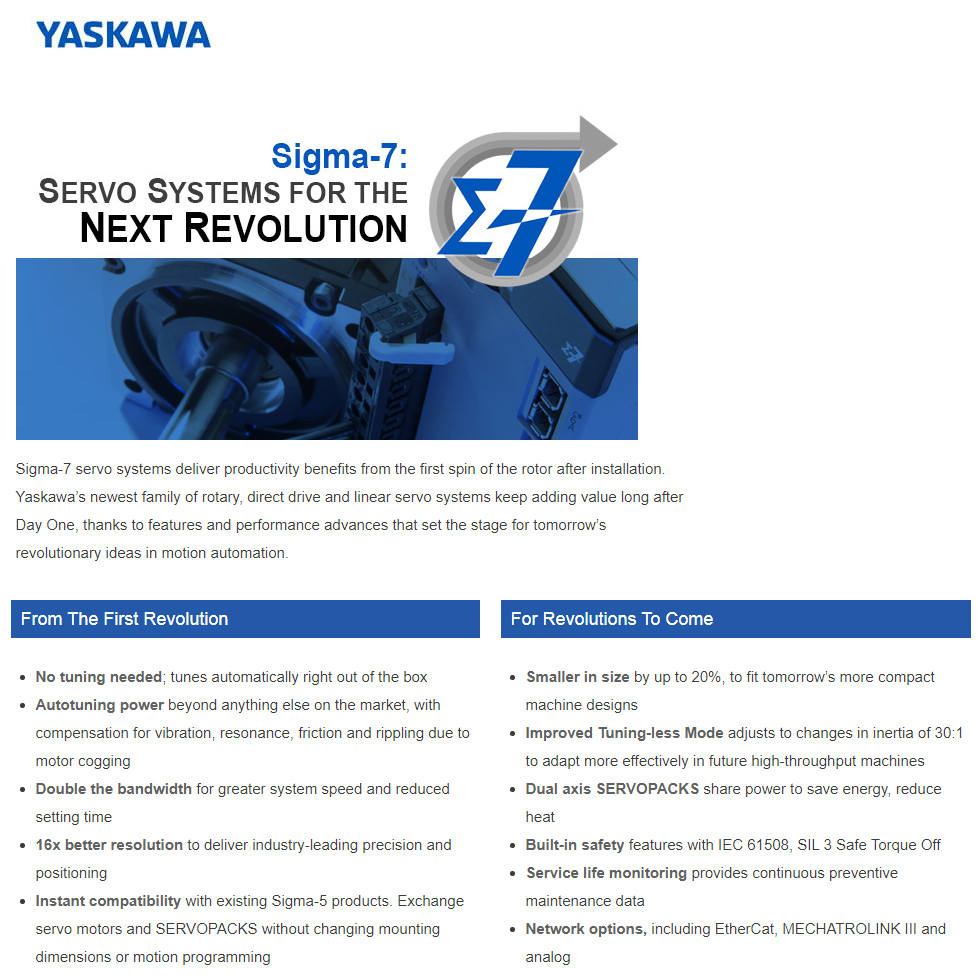

Sigma7- Servo Systems for the next Revolution
